Features
• Low Noise:
1 nV/√Hz input noise (60dB gain)
34 nV/√Hz input noise (0dB gain) (1512)
• Low THD+N (full audio bandwidth):
0.001% < 40dB gain
0.005% @ 60dB gain
• Low Current: 6 mA
• Wide Bandwidth: 7MHz @ G=100
• High Slew Rate: 19 V/µs
• Wide Output Swing: ±13.3V on ±15V supplies
• Current feedback (CFB) architecture
• Gain adjustable from -6 to >+60dB with one external resistor
• Industry-standard pinouts
Applications
• Microphone Preamplifiers
• Variable-gain Line Input Stages
• Differential Low Noise Preamplifiers
• Differential Summing Amplifiers
• Differential Variable Gain Amplifiers
• Moving-Coil Transducer Amplifiers
• Intercom/paging Systems
• Sonar
• Instrumentation

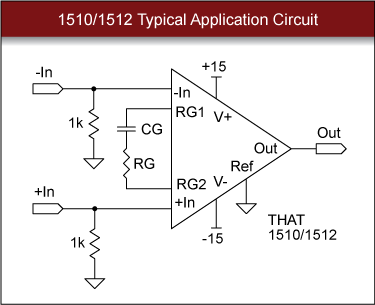

Description
The THAT 1510 and 1512 are high performance current-feedback instrumentation amplifiers designed for low source-impedance preamp and bus summing applications. The ICs are available in a variety of packages and pin configurations, making them pin compatible with the Analog Devices SSM2019 and SSM2017 (discontinued), and the Texas Instruments INA217 and INA163.
The parts are designed from the ground up in THAT’s complementary dielectric isolation process and include on-chip laser-trimmed Si-Chrome thin film resistor. In microphone preamplifier applications, both the 1510 and 1512 improve on previous integrated designs by offering lower noise at low gains, wider bandwidth, higher slew rate, lower distortion, and lower supply current.
Key Specifications (see 1510/1512 datasheet for complete specifications)
| Parameter | Conditions | 1510 Typical | 1512 Typical | Units |
| Equivalent Input Noise | 0 dB gain 60 dB gain |
57 1 |
34 1 |
nV/√Hz |
| Total Harmonic Distortion | 0 dB gain 20 dB gain 40 dB gain 60 dB gain |
0.0005 0.0012 0.0016 0.005 |
0.001 0.004 0.005 0.008 |
% |
| Bandwidth -3dB (small signal) | 0 dB gain 20 dB gain 40 dB gain 60 dB gain |
15 8 7 3 |
11 9 7 1.6 |
MHz |
| Slew Rate | — | 19 | 19 | V/µs |
| Supply Voltage | Maximum Minimum |
± 20 ± 5 |
± 20 ± 5 |
V |
| Supply Current | No signal | 6 | 6 | mA |
| Model | Package | Order Number | Pricing (1000) | Min Order Quantity | Reference |
| 1510 | 8 pin DIP | 1510P08-U | $3.71 | 50 | Request Samples |
| 8 pin SO | 1510S08-U | $2.86 | 98 | ||
| 8 pin SO Tape & Reel | 1510S08-UR | Contact us | 2000 | ||
| 14 pin SO | 1510S14-U | $3.02 | 55 | ||
| 14 pin SO Tape & Reel | 1510S14-UR | Contact us | 2000 | ||
| 16 pin SO Wide | 1510W16-U | $3.14 | 47 | ||
| 16 pin SO Wide Tape & Reel | 1510W16-UR | Contact us | 1000 | ||
| 1512 | 8 pin DIP | 1512P08-U | $4.26 | 50 | |
| 8 pin SO | 1512S08-U | $3.42 | 98 | ||
| 8 pin SO Tape & Reel | 1512S08-UR | Contact us | 2000 | ||
| 14 pin SO | 1512S14-U | $3.52 | 55 | ||
| 14 pin SO Tape & Reel | 1512S14-UR | Contact us | 2000 | ||
| 16 pin SO Wide | Inquire | — | — | ||
| 1510/1512 Demo Board | — | 1510-1512DEMO | $100.00 | 1 | |
| All 1510/1512 parts are RoHS compliant.
Minimum order quantity (MOQ) is one tube or one reel. Parts must be ordered in multiples of the MOQ. Samples are available to qualified applicants. Pricing is subject to change. ICs designated -UR are available on tape and reel for a modest increase in price and require an extended lead time. Please contact our sales department for pricing and current lead time. |
|||||
Design Notes (as PDF files)
Design Note 138 Configuring Gain with the THAT 1510 and 1512 (271k)
Design Note 140 Input and Output Circuits for THAT Preamplifier ICs (244k)
Analog Secrets Your Mother Never Told You (1528k)
Originally presented at the 123rd AES Convention, this seminar provides tips and techniques to achieve optimal performance in the analog signal path. Topics covered range from inputs (balanced line and mic level) to outputs (balanced to single-ended), and include analog signal processing (VCAs, RMS detection, and Analog Engines).
More Analog Secrets Your Mother Never Told You (915k)
A sequel to our popular first “Analog Secrets” seminar, this new presentation exposes more design secrets including “extreme performance” microphone preamps, protecting audio inputs/outputs during phantom power faults, and maintaining high dynamic range in low cost applications.
| Differential Audio Preamplifiers | ||
| THAT 1580 | Low Noise Differential Audio Preamplifier | 1580 Datasheet |
| THAT 1583 | Low Noise Differential Audio Preamplifier | 1583 Datasheet |
| Gain Controllers | ||
| THAT 5171 | Digital Preamplifier Controller | 5171 Datasheet |
| THAT 5173 | Low-Cost Digital Preamplifier Controller | 5173 Datasheet |
| THAT 5263 | 2 Channel Digital Preamplifier Controller | 5263 Datasheet |
| Digitally Controlled Microphone Preamplifiers | ||
| THAT 1580/5171 | 5171 Digital Microphone Preamplifier Chip Set | |
| THAT 1580/5173 | 5173 Digital Microphone Preamplifier Chip Set | |
| THAT 1583/5173 | 5173 Digital Microphone Preamplifier Chip Set | |
| THAT 1580/5263 | 5263 Digital Microphone Preamplifier Chip Set | |
| THAT 1583/5263 | 5263 Digital Microphone Preamplifier Chip Set | |
| THAT 626X | 626x Dual Programmable-Gain Preamplifier/ADC Driver | 626x Datasheet |
| Audio Preamplifiers | ||
| THAT 1510/1512 | Low Noise Single Ended Output Audio Preamplifiers | 1510/1512 Datasheet |
Additional Resources
Microphone Preamplifier Selector
A side by side comparison of the features and specifications of our microphone preamplifier ICs.
Industry Audio Preamplifier Comparison
THAT 1510 and 1512 features and specifications compared to competing products from other manufacturers.
1510/1512 Demo Board – The THAT 1510/1512 Demonstration System (US$100) allows an engineer to test the performance of a THAT 1510 or 1512 IC quickly and easily. The 1510/1512 Demo Board is self-contained circuit board with XLR connectors for signal input and output and a 3-pin header for connection to an external regulated DC power supply (not included). See the 1510/1512 DEMO Datasheet for more information.
Part Number Cross Reference – A chart of THAT part numbers cross-referenced to other IC manufacturers.
Harsh Environment Packaging – TT Semiconductor repackages THAT Corporation’s IC products in ruggidized plastic for the medical, aerospace, defense, and heavy industrial marketplaces.
1510/1512 Material Data Declaration Sheet
Material Data Declaration Sheets (MDDS) disclose the hazardous materials in our integrated circuits as required by the European RoHS directive.
